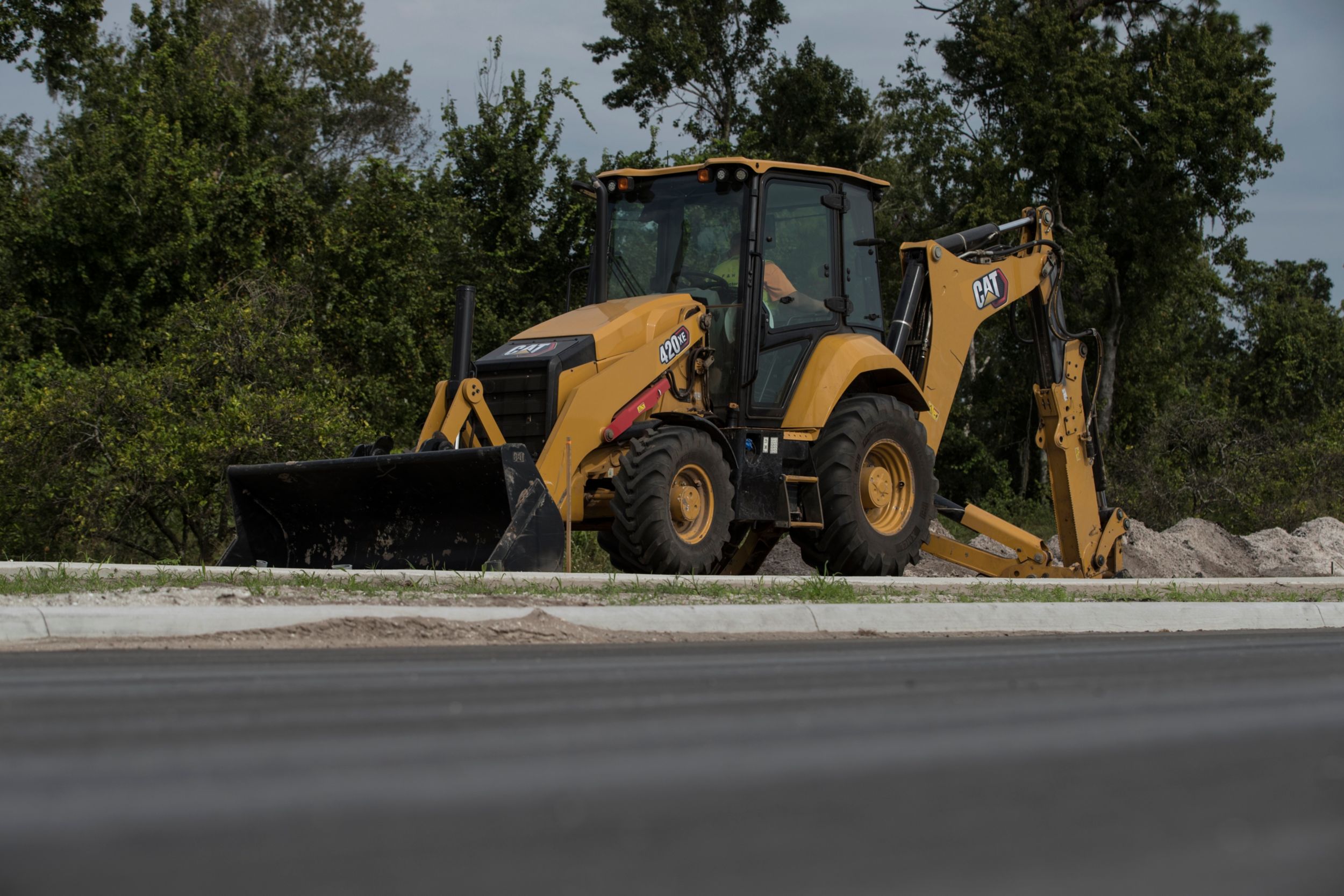

420 XE Backhoe Loader

420 XE Backhoe Loader

PDF Print Share

Engine

Net Power - SAE J1349
92 HP (68 kW) / 103 HP (76 kW)
Displacement
220in³
Engine Model
C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Net Power Rating at 2,200 rpm - ISO 9249
91hp
Power Rating Conditions - No De-Rating Required Up To
10000ft
Net Torque Rise - 1,400 rpm - SAE J1349
47%
Ratings at 2,200 rpm - Gross Power SAE J1995
102hp
Ratings at 2,200 rpm - Gross Power ISO 14396
100hp
Net Power Rating at 2,200 rpm - SAE J1349
92hp
Net Torque Rise - 1,400 rpm - SAE J1349
322ft-lb
Emissions
Engine meets Tier 4 Final/Stage V emission standards.
Net Peak Power - 1,800 rpm - ISO 9249
105hp
Dimensions - Bore
3.86in
Dimensions - Stroke
4.72in
Net Peak Power Rating @ 1,800 rpm - SAE J1349
105hp

Backhoe

Dig Depth - Standard
14ft

Weights

Operating Weight - Maximum
24251lb
Cab - ROPS/FOPS
320lb
Ride Control
33lb
Air Conditioning
99lb
Note
Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight,
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks
2017lb
Operating Weight - Maximum - ROPS Capacity
24251lb
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks
1642lb
Power-Shift Transmission
STD
Extendible Stick (excludes ft. counterweight)
595lb
Counterweights, base - Maximum
1014lb
Counterweights, base
256lb
Loader QC
540lb
All-Wheel Drive
STD
Operating Weight (estimated)
17271lb
Counterweights, base - Stackable, one
529lb

Hydraulic System

Pump Type
Variable-flow, Axial Piston
System Pressure - Loader
3626psi
Pump Capacity at 2,200 rpm
49.4gal/min
System Pressure - Backhoe
3626psi
Type
Closed Center

Transmission

Power-Shift Transmission with LTC - Optional - Forward - 2nd
5.8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC*
25mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC
18mile/h
Power Shift Transmission - Standard - Forward - 3rd
12mile/h
Power Shift Transmission - Standard - Reverse - 2nd
7.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 3rd
17mile/h
Power-Shift Transmission - Optional - Forward - 2nd
5.8mile/h
Power-Shift Transmission - Optional - Reverse - 1st
3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 4th
12mile/h
Power Shift Transmission - Standard - Forward - 1st
3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th
17mile/h
Power-Shift Transmission - Optional - Reverse - 2nd
7.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 1st
3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 1st
3.7mile/h
Power-Shift Transmission - Optional - Reverse - 3rd
17mile/h
Power Shift Transmission - Standard - Reverse - 1st
3.7mile/h
Power-Shift Transmission - Optional - Forward - 3rd
8mile/h
Power Shift Transmission - Standard - Reverse - 3rd
17mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th
25mile/h
Power Shift Transmission - Standard - Forward - 4th
25mile/h
Power Shift Transmission - Standard - Forward - 2nd
5.8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 3rd
8mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 2nd
7.7mile/h
Power-Shift Transmission - Optional - Forward - 6th
25mile/h
Power-Shift Transmission - Optional - Forward - 4th
12mile/h
Power-Shift Transmission - Optional - Forward - 5th
17mile/h
Power-Shift Transmission - Optional - Forward -1st
3.7mile/h
Note (2)
*Limited by engine speed to 40 km/h (25 mph).
Note (1)
Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.

Axle Ratings

Rear Axle - Dynamic
22046lb
Front Axle, AWD - Dynamic
19841lb
Front Axle, AWD - Static
51808lb
Rear Axle - Static
58422lb

Steering

Bore
2.6in
Turning Circle - (inner wheel not braked) - Outside Front Wheels
26.92ft
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket
35.25ft
Power Steering
Hydrostatic
Rod Diameter
1.6in
Type
Front Wheel Steering
Stroke
4.2in
Axle Oscillation
11°
Cylinder
One Double-Acting

Service Refill Capacities

Fuel Tank
42.3gal (US)
Hydraulic Tank
11.1gal (US)
Hydraulic System
25.1gal (US)
Cooling System with Air Conditioning
4.8gal (US)
Rear Axle
4.2gal (US)
Diesel Exhaust Fluid (DEF)
5gal (US)
Rear Axle - Planetaries
0.4gal (US)
Transmission - Power Shift - AWD
5gal (US)
Transmission - Power Shuttle - AWD
4.8gal (US)
Front Axle (AWD) - Planetaries
0.2gal (US)
Front Axle (AWD)
2.9gal (US)
Engine Oil - With Filter
2.4gal (US)

Ergonomic Operator Station

Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set for better visibility. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.

Load Sensing Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Machine Performance

The Cat C3.6 engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage V emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The system allows the operator to disconnect the machine, even while the diesel exhaust fluid is being purged from the system.

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.

Powershift Transmission

A Four Speed Powershift Transmission is standard to make shifting gears smooth and as simple as twisting the Powershuttle Lever.

Lift Performance

The redesigned boom cylinder increases lift performance by 15%.

Sustainability

  • The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes (420 XE/440/450/432/444 models only) selectable through the display and with fuel management modes.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working. Available on all models with pilot or E/H controls.

Standard Equipment:

Optional Equipment:

    Optional Equipment
    • Auxiliary hydraulics, loader, adjustable flow
    • Auxiliary hydraulics, rear, adjustable flow
    • Battery, additional, 850 CCA
    • Cab, deluxe
    • Cold weather fuel (–30° C/–22° F)
    • Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
    • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
    • Fenders, front with integral steps
    • Guard, boom protection plate
    • Guard, stabilizer, rock
    • Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
    • Hydraulic valves, backhoe (5th and 6th function)
    • Hydraulic lines, combined function auxiliary
    • LED lights, working (2 front, 2 rear)
    • Quick Coupler, hydraulic, dual lock
    • Quick Coupler, manual, dual lock
    • Quick Coupler, manual, pin lock
    • Radio and CD player, Bluetooth®
    • Ride Control
    • Rotating beacon, magnetic mount
    • Seat, air suspension, fabric with armrest
    • Seat, air suspension, fabric with armrest, heated
    • Seat belt, retractable, 75 mm (3 in)
    • Security system, Bluetooth
    • Security system, operator display
    • Side mirrors, cab, external
    • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
    • Stabilizer pads, reversible
    • Stick, extendible
    • Touch screen LCD Display: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
    • Transmission, AutoShift with lock-up torque converter, 6 speed
    • Vandalism protection, gauge cover
    • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
