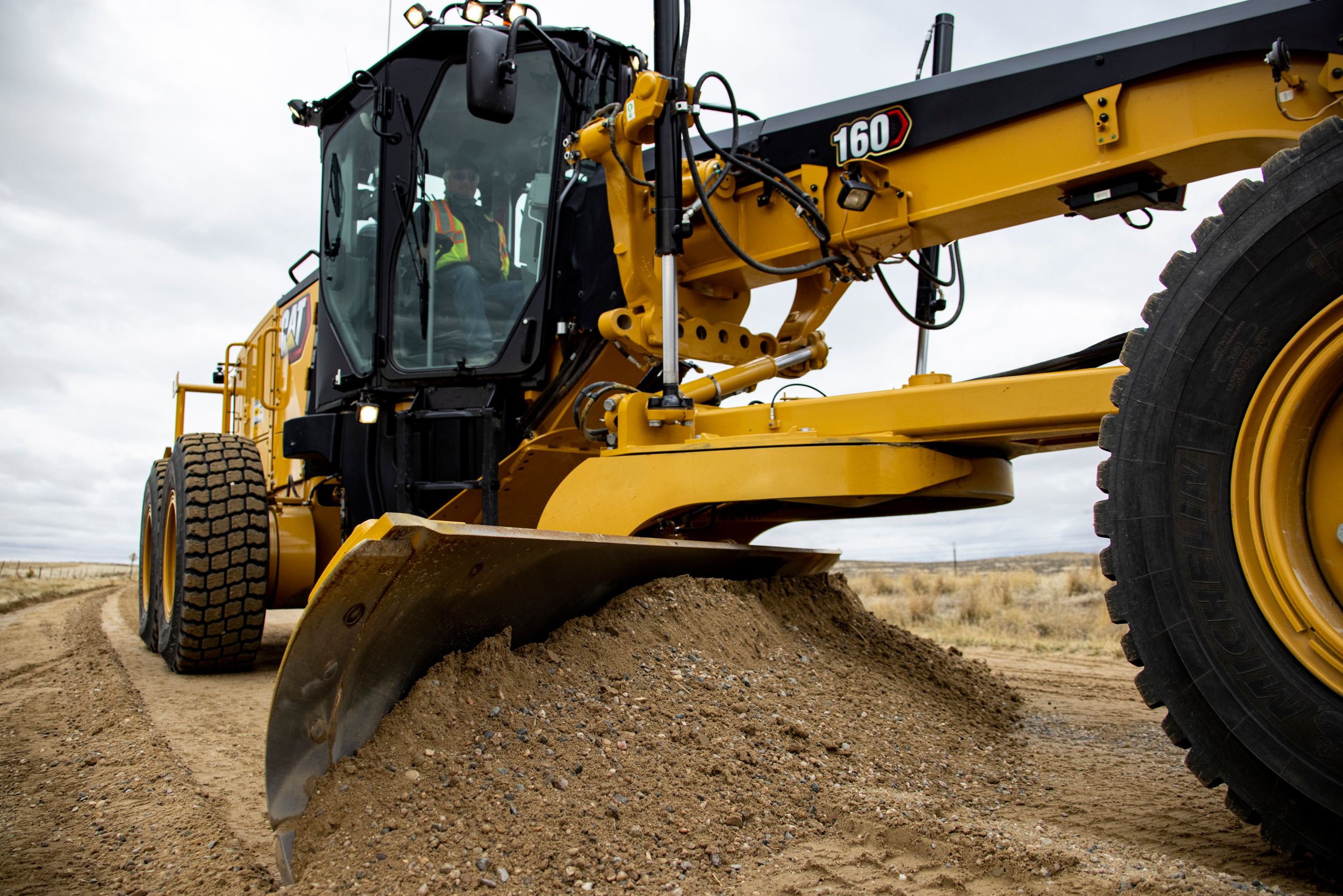

160 Motor Grader
The Cat® 160/160 AWD Motor Grader delivers power, efficiency, and operating finesse to the job. Joystick controls provide ergonomic comfort for the operator. This high-performance machine minimizes emissions with the ...
Engine
- Base Power (1st Gear) - Net
- 221hp
- Engine Model
- Cat® C9.3
- Emissions
- U.S. EPA Tier 4 Final/EU Stage V
- VHP Plus Range - Net
- 165-203 kW (221-272 hp)
- VHP Plus Range - Net - Metric
- 167-206 kW (224-276 hp)
- Bore
- 4.5in
- Displacement
- 567.5in³
- Stroke
- 5.9in
- Number of Cylinders
- 6
- Torque Rise
- 39%
- Maximum Torque - VHP Plus
- 1000lb/ft
- Derating Altitude
- 10000ft
- High Ambient - Fan Speed - Maximum
- 1,550 rpm
- High Ambient - Fan Speed - Minimum
- 500 rpm
- High Ambient - Fan Speed - Standard
- 1,400 rpm
- High - Ambient Capability
- 122°F
- Standard Capability
- 109°F
- Speed at Rated Power
- 2,000 rpm
- Base Power (1st Gear) - Net - Metric
- 224hp
- VHP Plus - Gear - Net Power - Forward 1st
- 221hp
- VHP Plus - Gear - Net Power - Forward 2nd
- 231hp
- VHP Plus - Gear - Net Power - Forward 3rd
- 241hp
- VHP Plus - Gear - Net Power - Forward 4th
- 252hp
- VHP Plus - Gear - Net Power - Forward 5th
- 257hp
- VHP Plus - Gear - Net Power - Forward 6th
- 262hp
- VHP Plus - Gear - Net Power - Forward 7th
- 267hp
- VHP Plus - Gear - Net Power - Forward 8th
- 272hp
- VHP Plus - Gear - Net Power - Reverse 1st
- 221hp
- VHP Plus - Gear - Net Power - Reverse 2nd
- 231hp
- VHP Plus - Gear - Net Power - Reverse 3rd-6th
- 241hp
Weights
- Operating Weight - Typically Equipped
- 45547lb
- Operating Weight - Typically Equipped - Front Axle
- 13237lb
- Operating Weight - Typically Equipped - Rear Axle
- 32310lb
- Operating Weight - Typically Equipped - Total
- 45547lb
- Gross Vehicle Weight - Maximum - Front Axle
- 17075lb
- Gross Vehicle Weight - Maximum - Rear Axle
- 38069lb
- Gross Vehicle Weight - Maximum - Total
- 55144lb
- Gross Vehicle Weight - Base - Front Axle
- 9907lb
- Gross Vehicle Weight - Base - Rear Axle
- 28812lb
- Gross Vehicle Weight - Base - Total
- 38719lb
Moldboard
- Blade Width
- 14ft
- Cutting Edge Thickness
- 0.6in
- Cutting Edge Width
- 6in
- End Bit - Thickness
- 0.6in
- End Bit - Width
- 6in
- Moldboard - Blade Width
- 14ft
- Moldboard - Height
- 24in
- Moldboard - Thickness
- 0.87in
- Throat Clearance
- 6.5in
- Blade Down Pressure - Base GVW
- 17004lb
- Blade Down Pressure - Maximum GVW
- 29308lb
- Blade Pull - Base GVW
- 25931lb
- Blade Pull - Maximum GVW
- 34262lb
- Arc Radius
- 16.3in
Tandems
- Tandem Oscillation - Front Down
- 25
- Width
- 8in
- Height
- 22.5in
- Drive Chain Pitch
- 2in
- Tandem Oscillation - Front Up
- 15
- Sidewall Thickness - Inner
- 0.69in
- Sidewall Thickness - Outer
- 0.71in
- Wheel Axle Spacing
- 60in
Dimensions
- Height - Top of Cab
- 130in
- Height - Top of Cylinders
- 120in
- Height - Front Axle Center
- 23.5in
- Height - Exhaust Stack
- 128in
- Length - Front Tire to Rear of Machine
- 351in
- Length - Counterweight to Ripper
- 399in
- Length - Between Tandem Axles
- 60in
- Length - Front Axle to Mid Tandem
- 241in
- Length - Front Axle to Moldboard
- 100in
- Width - Outside Front Tires
- 98.9in
- Width - Outside Rear Tires
- 98.9in
- Width - Tire Center Lines
- 84.3in
- Ground Clearance - Rear Axle
- 13.3in
Blade Range
- Maximum Lift Above Ground
- 17.8in
- Maximum Depth of Cut
- 29.5in
- Maximum Blade Position Angle
- 90
- Maximum Shoulder Reach Outside of Tires - Left
- 82.3in
- Maximum Shoulder Reach Outside of Tires - Right
- 89.7in
- Moldboard Sideshift - Left
- 20.1in
- Moldboard Sideshift - Right
- 26in
- Blade Tip Range - Backward
- 5
- Blade Tip Range - Forward
- 40
- Circle Centershift - Left
- 27.4in
- Circle Centershift - Right
- 28.7in
Frame
- Front Frame Structure - Height
- 12.6in
- Front Frame Structure - Width
- 12in
- Front Axle - Height to Center
- 23.5in
- Front Axle - Total Oscillation per Side
- 32
- Front Axle - Wheel Lean - Left/Right
- 18
- Front-Top/Bottom Plate - Thickness
- 0.87in
- Front-Top/Bottom Plate - Width
- 12in
- Drawbar - Height
- 6in
- Drawbar - Thickness
- 0.5in
- Drawbar - Width
- 3in
- Circle - Blade Beam Thickness
- 1.6in
- Circle - Diameter
- 61.1in
- Circle - Height
- 6.3in
Hydraulic System
- Circuit Type
- Parallel
- Pump Type
- Variable Piston
- Reservoir Tank Capacity
- 16.9gal (US)
- Pump Output
- 55.5gal/min
- Maximum System Pressure
- 3503psi
- Standby Pressure
- 885psi
Air Conditioning System
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system con
Power Train
- Transmission
- APECS, Direct Drive, Powershift
- Forward/Reverse Gears
- 8 Forward/6 Reverse
- Brakes - Service - Surface Area
- 3565in²
- Brakes - Service
- Multiple Oil Disc
- Brakes - Parking
- Multiple Oil Disc
- Brakes - Secondary
- Dual Circuit Control
Service Refill
- Fuel Capacity
- 104gal (US)
- Diesel Exhaust Fluid
- 5.8gal (US)
- Circle Drive Housing
- 1.8gal (US)
- Cooling System
- 15gal (US)
- Hydraulic System - Total
- 26.4gal (US)
- Hydraulic System - Tank
- 16.9gal (US)
- Transmission - Differential - Final Drives
- 18.5gal (US)
- Tandem Housing - Each
- 22.9gal (US)
- Engine Oil
- 7.9gal (US)
- Front Wheel Spindle Bearing Housing
- 0.13gal (US)
Ripper
- Ripping Depth - Maximum
- 16.8in
- Ripper Shank Holders
- 5
- Ripper Shank Holder Spacing
- 21in
- Machine Length Increase, Beam Raised
- 40.6in
- Penetration Force
- 20812lb
- Pry-Out Force
- 28493lb
Scarifier
- Mid, V-Type - Working Width
- 46.6in
- Mid, V-Type - Scarifier Shank Holders
- 11
- Mid, V-Type - Scarifier Shank Holder Spacing
- 4.6in
- Mid, V-Type - Scarifying Depth, Maximum
- 11.5in
- Rear - Scarifier Shank Holders
- 9
- Rear - Scarifier Shank Holder Spacing
- 10.5in
- Rear - Scarifying Depth, Maximum
- 16.8in
- Rear - Working Width
- 84in
- Front, V-Type - Working Width
- 47.4in
- Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders
- 5 or 11
- Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing
- 4.6in
- Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum
- 18.4in
- Front, V-Type, 5 or 11 Tooth - Working Width
- 40.6in
Operating Specifications
- Top Speed - Forward
- 29.5mile/h
- Forward - 1st
- 2.6mile/h
- Forward - 2nd
- 3.5mile/h
- Forward - 3rd
- 5.1mile/h
- Forward - 4th
- 7mile/h
- Forward - 5th
- 10.8mile/h
- Forward - 6th
- 14.7mile/h
- Forward - 7th
- 20.3mile/h
- Forward - 8th
- 29.5mile/h
- Top Speed - Reverse
- 23.3mile/h
- Reverse - 1st
- 2mile/h
- Reverse - 2nd
- 3.8mile/h
- Reverse - 3rd
- 5.5mile/h
- Reverse - 4th
- 8.5mile/h
- Reverse - 5th
- 16mile/h
- Reverse - 6th
- 23.3mile/h
- Articulation Angle - Left/Right
- 20°
- Steering Range - Left/Right
- 50°
- Turning Radius - Outside Front Tires
- 25.59ft
Standards
- Brakes
- ISO 3450
- Sound
- ISO 6394; ISO 6395
- Steering
- ISO 5010
- ROPS/FOPS
- ISO 3471; ISO 3449
Latest Features
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use 10-inch touchscreen menu.
- Integrated high-definition (HD) rear vision camera.
- Display-initiated Remote Flash.
- Operator may choose to have rear vision camera on all the time or have it show in display automatically when machine is put in reverse gears.
- Larger cross slope screen.
- Planned Maintenance (PM) alert sync in display.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
- Color-coded notifications set critical messages apart from the rest.

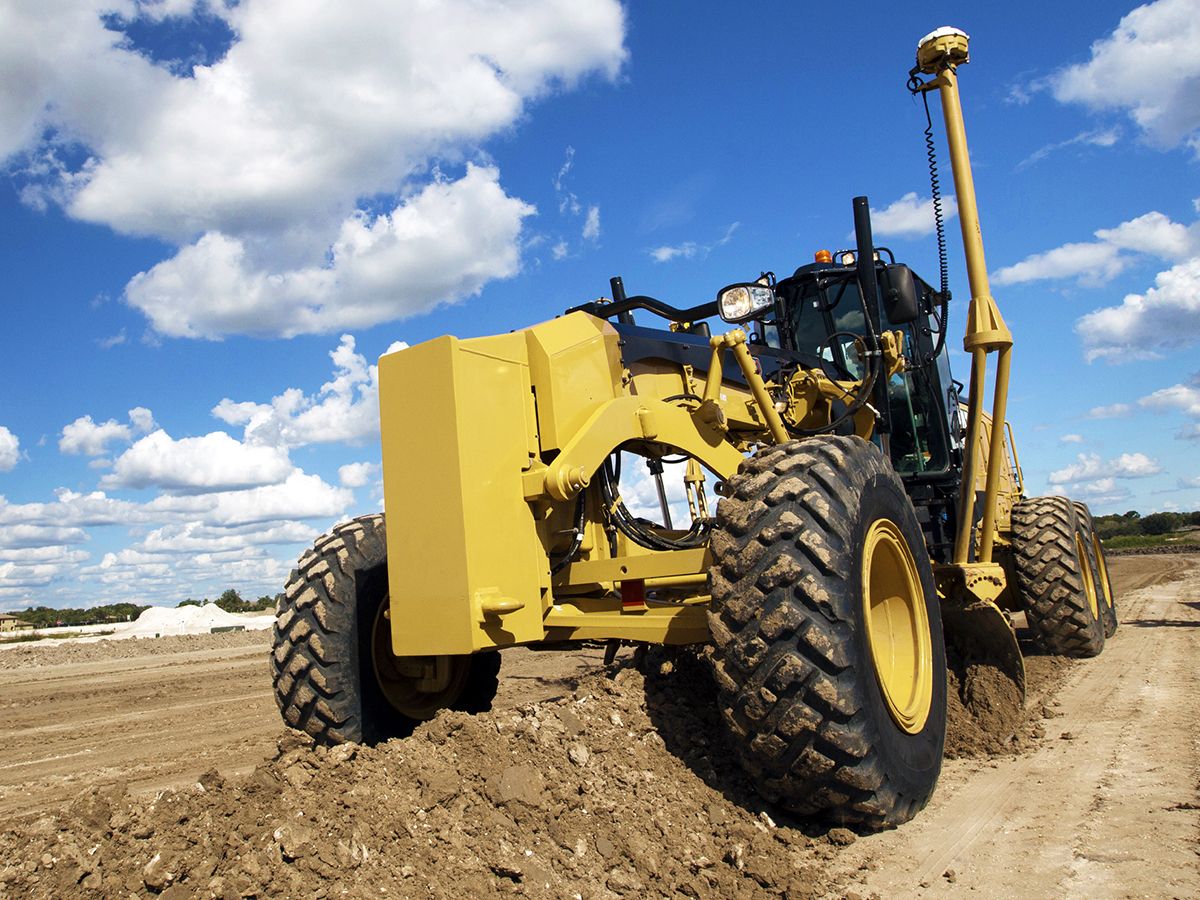

- Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. - Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two sensors to simplify mastless upgrades. It allows the operator to manually control one end of the moldboard while the system controls the other. - Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Cab Modernization
Technology Options
New High Performance Circle
The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15B.
Designed for Operators
- Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure, and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Rear vision camera further enhances lines of sight all around the machine.
- Experience the most spacious, comfortable cab in the industry.
- Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced, helping reduce operator fatigue for better productivity.
- Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder, and float.
- Right joystick controls drawbar, circle, and moldboard functions, as well as electronic throttle control and manual differential lock/unlock.
- Joystick lean angle mirrors the steer tires' turning angle.
- A brake tensioning system holds the joystick in position until the operator moves it.
- Cat Motor Graders with joystick controls have industry-exclusive follow steer, which allows the front wheels to follow the joystick input.
- Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
- Control switches are in easy reach.
- Updated seat offers softer cushions, three-position tilt, and optional heated and heated/cooled cushions.
- Control pods are electronically positioned, allowing each operator to set the ideal operating position.
- Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
- High-capacity heating, ventilation, and air conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust, and keeps windows clear.
- An optional deluxe radio with CD features MP3 and Bluetooth® technology.
- Touchscreen display shows machine performance and diagnostic information. Located in center console, it also displays Grade Control Cross Slope readings.
- Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
- Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
- Select fine, normal, or coarse blade lift modulation to best fit application or operator preference.
Powerful Efficiency
- Cat C9.3 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity.
- Latest engine technology optimizes productivity, fuel efficiency, reliability, life, and minimize emissions.
- Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
- Optional reversing fan clears debris on the go.
- Engine Idle Shutdown timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
- The motor graders give you efficiency and longevity in your most demanding applications.
- Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the powertrain.
- Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
- Programmable Auto Shift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
- Eco mode can be engaged for up to 10% fuel savings, depending upon application.
- Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
- Wide operating gear range for maximum productivity.
- Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
- Sealed spindle on tandem drive machines keeps front axle bearings lubricated and protected from contaminants. The Cat “live spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life. Rear tandem machines only.
- Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
- Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
- Emissions technology is transparent with no action required from the operator or need to stop. Regeneration runs automatically at cold start-up and, if needed, in the background while you work.
- Reaching Tier 4 Final standards only required one additional system to the proven Cat emission strategy - Selective Catalytic Reduction (SCR).
- SCR utilizes diesel exhaust fluid (DEF), conveniently filled from ground level when refueling.
- A gauge on the dash shows your fluid level.
- At shutdown, a pump automatically purges the DEF lines.
- If the engine/aftertreatment temperatures are high, a Delayed Engine Shutdown will activate automatically to cool the machine and then purge the lines.
Heavy Duty Construction
- Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
- The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
- The optional HPC improves machine performance, efficiency, and uptime availability when maintaining the jobsite.
- Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
- The drawbar, circle, and moldboard make it easy for you to keep the components tight.
- Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
- Durable nylon composite wear inserts maximize circle torque and component life.
- Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
- Shimless Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
- An aggressive blade angle, optimized moldboard curvature, and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
- Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
- Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
- Proven load-sensing hydraulic system and advanced electro-hydraulics give you superior implement control and responsive performance that makes operators' jobs easier. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
- Consistent, predictable movement - Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
- Balanced flow - hydraulic flow is proportioned to give you confidence that all implements will operate simultaneously without slowing the engine or speed of some implements.
- Blade can float freely under its own weight. By floating both cylinders, the blade can follow the contours of the ground. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
- Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, reducing heat build-up and extending component life.
- Cat XT™ hose allows high pressures for maximum power and reduced downtime.
Technology that Gets Work Done
Cat technologies offer key improvements in equipment management, productivity, and safety.
Equipment Management
Increase uptime and reduce operating costs.
Productivity
Monitor production and manage jobsite efficiency.
Safety
Enhance jobsite awareness to keep your people and equipment safe.
Featured Cat Technologies
Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two sensors to simplify mastless upgrades. It allows the operator to manually control one end of the moldboard while the system controls the other.
Attachment Ready Option
ARO provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Using the data from technology equipped machines, get more information and insight into equipment and operations.
Electronic Technician (Cat ET)
Allows service technicians access to stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle
Raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration
Gain protection for the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Production Measurement System
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
Product Link and VisionLinkTM
Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time, and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine, and finish grade applications.
Safety First
- Operator presence monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
- Speed sensitive steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
- Secondary steering system's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
- Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
- Brakes are located at each tandem wheel to eliminate braking loads on the powertrain. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
- Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off, and around the machine.
- Circle Drive Slip Clutch protects the drawbar, circle, and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
- Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
- Safety Features
- Optional rearview camera with in-cab monitor integrated into main display
- New, optional seat belt indicator light reminds operator to fasten safety belt
- Grouped, ground level service points
- Laminated front window glass
- Optional LED lighting
- Ground-level electrical disconnect switch
- Ground-level engine shutoff switch
- Anti-glare paint eases night operation
- Optional front and rear fenders
Top-Tier Service and Support
- Cat motor graders are designed to help you increase uptime and reduce costs.
- Grouped service points and extended service intervals save maintenance time.
- New, optional LED lights in the left-hand compartments make it more convenient to service the machine in low light.
- Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training, and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.
Sustainability
- The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
