Cat 906 Compact Wheel Loader
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with ...
Engine
- Maximum Gross Power
- 74.7hp
- Engine Model
- Cat C2.8*
- Maximum Engine Speed
- 2550 rpm
- Maximum Gross Power - Rated Engine Speed
- 2400r/min
- Maximum Gross Power - SAE J1995
- 74.7hp
- Maximum Gross Power - ISO 14396
- 74.3hp
- Maximum Gross Power - ISO 14396 (metric)
- 75.3mhp
- Rated Net Power - Rated Engine Speed
- 2400r/min
- Rated Net Power - SAE J1349
- 72.7hp
- Rated Net Power - ISO 9249
- 72.1hp
- Rated Net Power - 2,400 rpm - ISO 9249 (metric)
- 73.1mhp
- Maximum Gross Torque - SAE J1995
- 222lb/ft
- Maximum Gross Torque - ISO 14396
- 221lb/ft
- Maximum Net Torque - SAE J1349
- 218lb/ft
- Maximum Net Torque - ISO 9249
- 217lb/ft
- Displacement
- 171in³
- Bore
- 3.54in
- Stroke
- 4.33in
- Note
- Advertised power is tested per the specified standard in effect at the time of manufacture.
- Note (1)
- Net power advertised is the power available at the flywheel.
- Note (2)
- *Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) an
- Note (3)
- #Maximum gross and net torque measured at 1,600 rpm.
Weights
- Operating Weight
- 12628lb
Buckets
- Bucket Capacities
- 0.75-1.55 m³ (1.0-2.0 yd³)
- Bucket Capacities - General Purpose
- 0.80-1.35 m³ (1.0-1.7 yd³)
- Bucket Capacities - Light Material
- 1.25-1.55 m³ (1.6-2.0 yd³)
- Multi-Purpose
- 0.75-1.1 m³ (1.0-1.4 yd³)
- Note
- Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
- Note (1)
- Bucket capacities stated include BOCE, in line with ISO 7546.
Sustainability
- Recyclability
- 93%
Transmission
- Forward and Reverse - Speed Range Creep#
- 6mile/h
- Forward and Reverse - Speed Range 1*
- 6mile/h
- Forward and Reverse - Speed Range 2** - High Speed
- 10.5mile/h
- Forward and Reverse - Speed Range 2** - Standard
- 12mile/h
- Forward and Reverse - Speed Range 3***
- 25mile/h
- Note
- #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
- Note (1)
- *Creep function not available in this gear or above.
- Note (2)
- **Max speed dependent on model and configuration (standard vs. high speed transmission).
- Note (3)
- ***Reverse is 30 km/h (19 mph).
Service Refill Capacities
- Fuel Tank
- 18.5Gal
- Cooling System
- 3.2Gal
- Engine Crankcase
- 2.3Gal
- Axles - Front Center Differential
- 2.3Gal
- Axles - Rear Center Differential
- 2.3Gal
- Hydraulic System - Including Tank
- 17.8Gal
- Hydraulic Tank
- 11.8Gal
- Transmission
- 0.6Gal
- Note
- No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
Axles
- Front
- Fixed (standard) Locking Differential (optional)
- Rear
- Fixed (standard) Locking Differential (optional)
- Note
- Oscillation of ±11 degrees via hitch between front and rear frames.
Steering
- Steering Articulation Angle - Each Direction
- 39°
- Maximum Flow - Steering Pump
- 12.3gal/min
- Maximum Working Pressure - Steering Pump
- 3336psi
- Steering Cycle Times – (full left to full right) – at High Idle
- 2.8s
- Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
- 3.25 turns or 4.00 turns
Tires
- Tire Size - Standard
- *405/70 R18 SPT9
- Tire Size - Optional
- 405/70 R18 Powerloads
- Tire Size - Optional (1)
- 340/80 R18 XMCL/Bibload
- Tire Size - Optional (2)
- 340/80 R18 TRI 2
- Tire Size - Optional (3)
- 40X14-20 TL, SM/TR
- Tire Size - Optional 4
- 340/80 R18 Duraforce
- Note
- *This tire has been used for all dimension, stability and performance data.
- Note (1)
- Other tire choices are available. Contact your Cat dealer for details.
- Note (2)
- In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
- Note (3)
- Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Cab
- ROPS
- ISO 3471:2008
- FOPS
- ISO 3449:2005 Level II
- Note (1)
- Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Dimensions - With SSL Coupler - Approximate
- Height - Ground to Cab
- 8.08ft
- Height: Ground to Beacon**
- 8.67ft
- Height: Ground Axle Center**
- 1.58ft
- Height - Ground Clearance
- 1ft
- Length - Overall with Bucket
- 18.17ft
- Length: Rear Axle to Bumper
- 4.58ft
- Length: Hitch to Front Axle
- 3.58ft
- Length - Wheel Base
- 7.08ft
- Clearance - Bucket at 45°
- 7.83ft
- Clearance: Load over Height**
- 9.5ft
- Clearance - Level Bucket
- 9.92ft
- Height - Bucket Pin
- 10.67ft
- Height: Overall**
- 13.83ft
- Reach - Bucket at 45°
- 2.67ft
- Carry Height: Bucket Pin
- 1.17ft
- Dig Depth
- 0.25ft
- Width - Bucket
- 6.17ft
- Width - Tread Center
- 4.67ft
- Turning Radius - Over Bucket
- 14.67ft
- Width - Over Tires
- 6.07ft
- Turning Radius: Outside of Tires
- 12.92ft
- Turning Radius - Inside Tire
- 6.75ft
- Rack Angle at Full Lift
- 51°
- Dump Angle at Full Lift
- 50°
- Rack Angle at Carry
- 46°
- Departure Angle - Degrees
- 30°
- Articulation Angle - Degrees
- 39°
- Operating Weight: Bucket?^
- 12863lb
- Tipping Load – Straight – ISO 14397-1?†
- 8613lb
- Tipping Load – Full Turn – ISO 14397-1?†
- 7220lb
- Operating Weight: Carriage and Tines?^^
- 12434lb
- Tipping Load - Straight?†
- 7359lb
- 80% of Tip: Firm and Level EN474-3?††
- 4970lb
- Note (1)
- *Vary with bucket
- Note (2)
- **Vary with tire
- Note (3)
- ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
- Note (4)
- ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
- Note (5)
- †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
- Note (6)
- ††Full compliance to EN474-3 and SAE J1197.
- Note (7)
- #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
- Note (8)
- Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class
- Note (9)
- Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
- Tipping Load - Full Turn?†
- 2818kg
- Length: Front Axle to Front of Coupler
- 4.33ft
Loader Hydraulic System
- Main Relief - 1st Auxiliary (3rd slice)
- 3408psi
- Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*
- 21gal/min
- Main Relief - 1st Auxiliary (3rd slice) - High Flow*
- 32gal/min
- Main Relief - 2nd Auxiliary (4th slice)
- 3408psi
- Main Relief - 2nd Auxiliary (4th slice) - Flow
- 12gal/min
- Hydraulic Cycle Time - Rackback
- 2.2s
- Hydraulic Cycle Time - Lift
- 5s
- Hydraulic Cycle Time - Dump
- 1.6s
- Hydraulic Cycle Time - Float Down
- 2.8s
- Note
- * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.
Dimensions - With HPL-V Coupler - Approximate#
- Height: Ground to Cab**
- 8.08ft
- Height: Ground to Beacon**
- 8.67ft
- Height: Ground Axle Center**
- 1.58ft
- Height: Ground Clearance**
- 1ft
- Length: Overall*
- 17.58ft
- Length: Rear Axle to Bumper
- 4.58ft
- Length: Hitch to Front Axle
- 3.58ft
- Length: Wheel Base
- 7.08ft
- Clearance: Bucket at 45° *
- 8.25ft
- Clearance: Load over Height**
- 9.5ft
- Clearance: Level Bucket**
- 9.92ft
- Height: Bucket Pin**
- 10.67ft
- Height: Overall**
- 13.5ft
- Reach: Bucket at 45° *
- 2.42ft
- Carry Height: Bucket Pin
- 1.08ft
- Dig Depth**
- 0.33ft
- Width: Bucket
- 6.17ft
- Width: Tread Center
- 4.67ft
- Turning Radius: Over Bucket
- 14.17ft
- Width: Over Tires
- 6.08ft
- Turning Radius: Outside of Tires
- 12.92ft
- Turning Radius: Inside of Tires
- 6.75ft
- Rack Angle at Full Lift
- 56°
- Dump Angle at Full Lift
- 45°
- Rack Angle at Carry
- 51°
- Departure Angle - Degrees
- 30°
- Articulation Angle - Degrees
- 39°
- Operating Weight: Bucket?^
- 12632lb
- Tipping Load - Straight - ISO 14397-1?†
- 9760lb
- Tipping Load - Full Turn - ISO 14397-1?†
- 8225lb
- Operating Weight: Carriage and Tines?^^
- 12240lb
- Tipping Load - Straight?†
- 7748lb
- 80% of Tip: Firm and Level EN474-3?††
- 5211lb
- Note (1)
- *Vary with bucket
- Note (2)
- **Vary with tire
- Note (3)
- ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
- Note (4)
- ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
- Note (5)
- †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
- Note (6)
- ††Full compliance to EN474-3 and SAE J1197.
- Note (7)
- #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
- Note (8)
- Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class
- Note (9)
- Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
- Length: Front Axle to Front of Coupler
- 3.5ft
- Tipping Load - Full Turn?†
- 6514lb
CONFIGURED FOR SUCCESS
- Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
ENJOY ALL DAY COMFORT
- All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
- Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.
EFFICIENTLY POWERFUL
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
WORK MADE EASY
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
CUSTOMIZE YOUR EXPERIENCE
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
PURPOSE BUILT SPECIALTY MODELS
- Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
- The 906 is availble with the following specific handler arrangements: Ag Handler and Waste Handler
AFTERMARKET AND SERVICES
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.

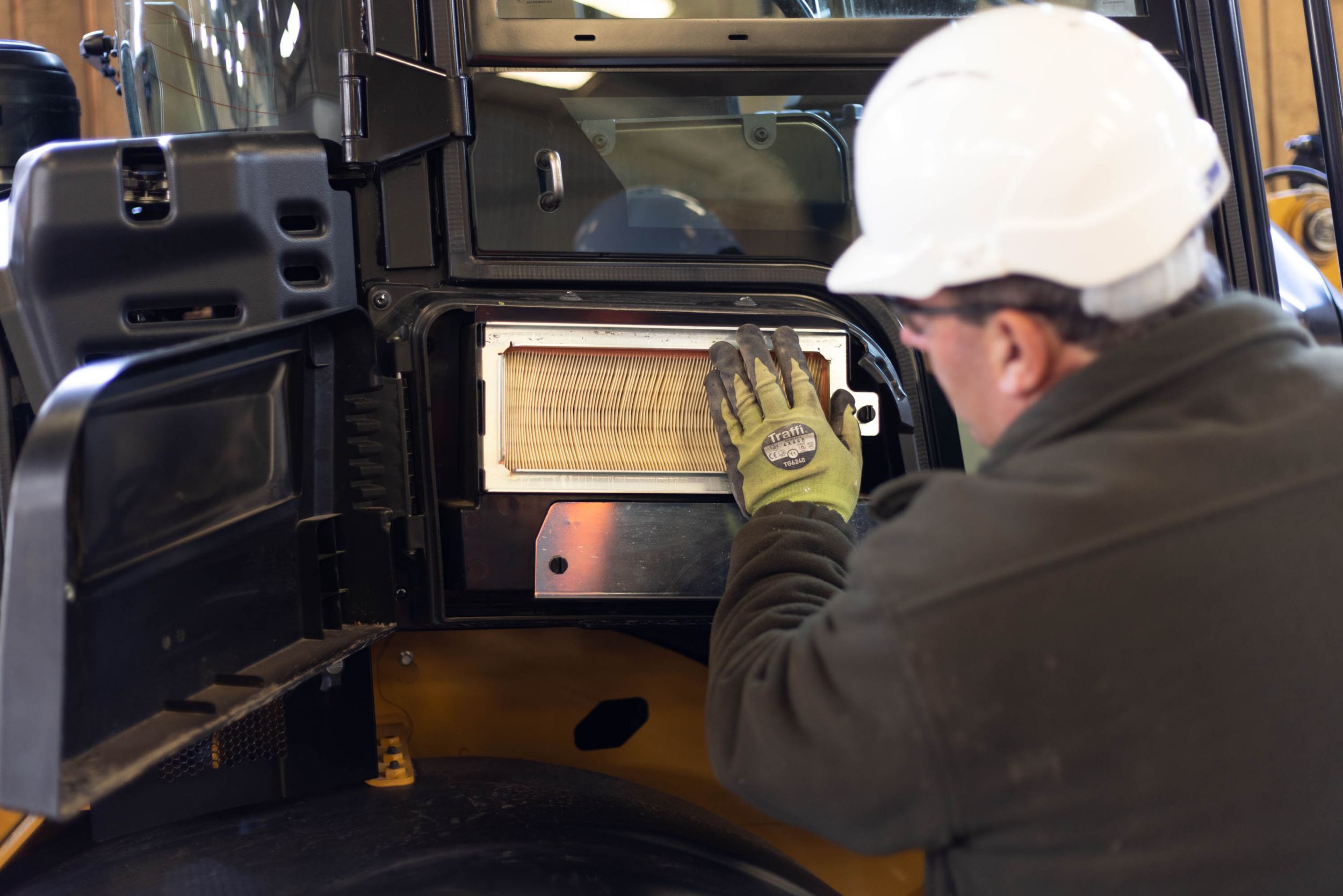

- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
SUSTAINABILITY
- The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
- Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
- Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
- Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
- Shift on the go transmission, means no need to stop so you keep your momentum.
