305.5E2 CR Mini Hydraulic Excavator

305.5E2 CR Mini Hydraulic Excavator

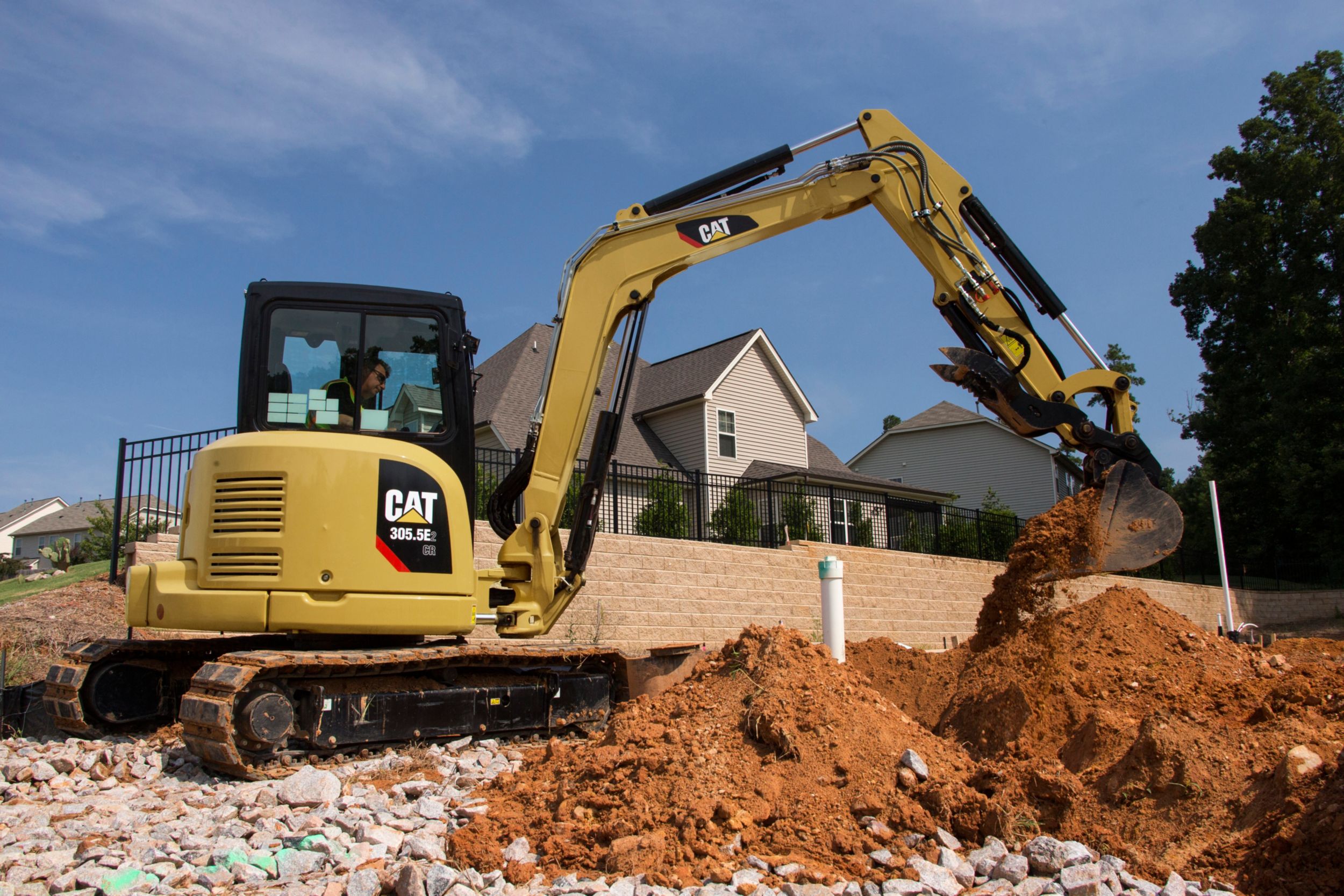

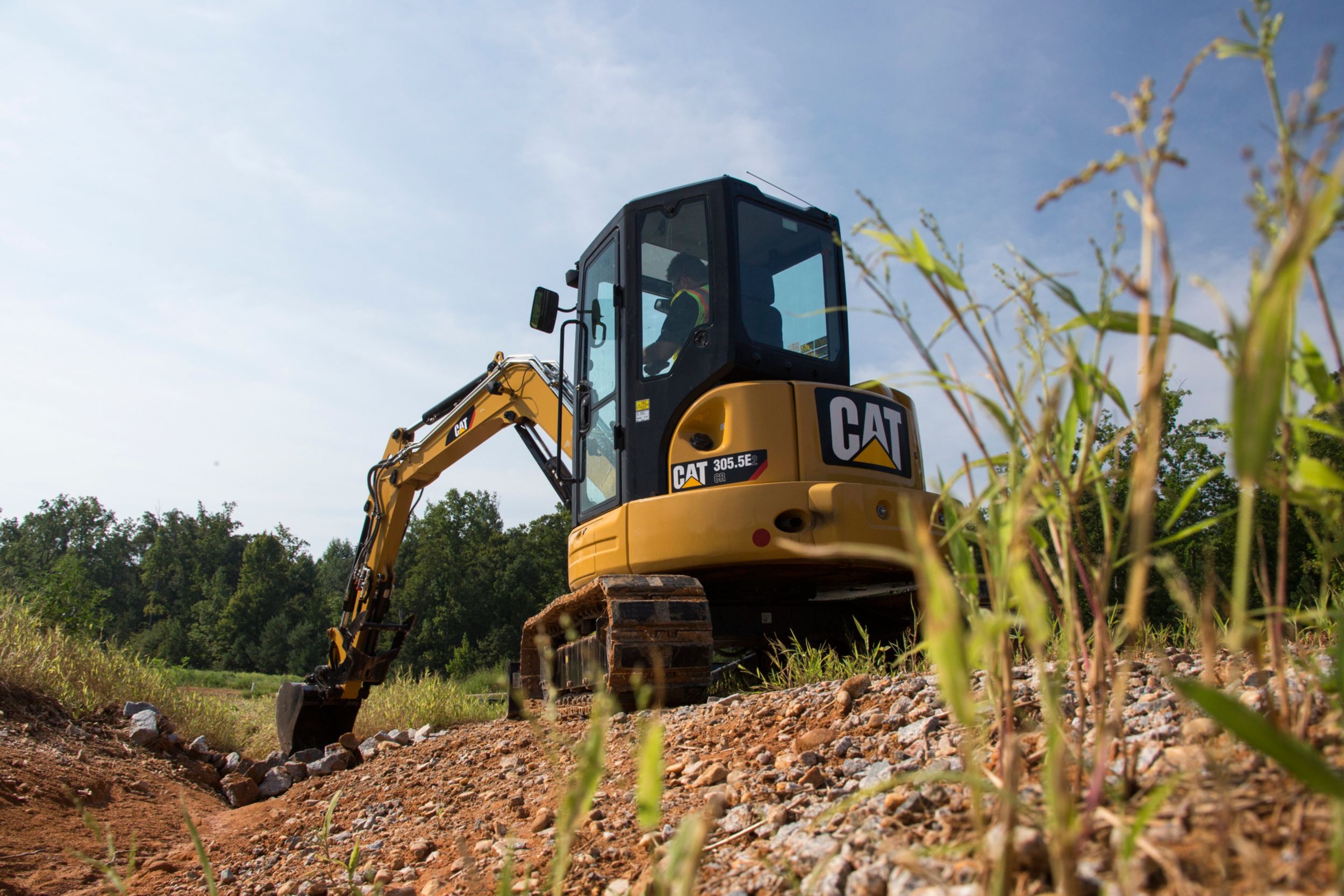

The Cat® 305.5E2 CR Mini Hydraulic Excavator delivers high performance, durability and versatility in a compact design to help you work in a variety of applications.
PDF Print Share

Engine

Net Power
44.1HP
Engine Model
Cat® C2.4
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269
44.1HP
Gross Power - ISO 14396
45.7HP
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards.
Bore
3.4in
Displacement
146in³
Stroke
4in

Weights*

Operating Weight
11958lb
Weight - Canopy, Standard Stick
11503lb
Note
*Weight includes counterweight, rubber tracks, bucket, operator, full fuel and auxiliary lines.
Weight - Cab, Standard Stick
11863lb
Weight - Cab, Long Stick
11958lb
Weight - Canopy, Long Stick
11596lb

Dimensions - Long Stick

Dig Depth
152in
Maximum Reach - Ground Level
237in
Maximum Blade Depth
22in
Maximum Reach
243in
Maximum Blade Height
16in
Maximum Dig Height
220in
Maximum Dump Clearance
161in
Boom Height - Shipping Position
85in
Boom In Reach
100in
Boom Swing - Left
27in
Vertical Wall
107in
Tail Swing
44in
Track Belt/Shoe Width
16in
O/A Shipping Height
100in
O/A Shipping Length
215in
O/A Track Width
78in
O/A Undercarriage Length
102in
Swing Bearing - Height
24in
Boom Swing - Right
31in

Swing System

Machine Swing Speed
10r/min
Note
*Automatic swing brake, spring applied, hydraulic release.
Boom Swing - Right
50°
Boom Swing - Left - Without Stop*
80°
Boom Swing - Left - With Stop*
60°

Blade

Width
78in
Height
14.8in
Dig Depth
21.9in
Lift Height
15.9in

Hydraulic System

Maximum Auxiliary Circuit - Primary - Pressure
3553psi
Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Bucket
11445lb
Pump Flow at 2,400 rpm
39.6gal/min
Operating Pressure - Travel
3553psi
Operating Pressure - Swing
3132psi
Operating Pressure - Equipment
3553psi
Digging Force - Stick - Standard
6500lb
Digging Force - Stick - Long
5575lb
Maximum Auxiliary Circuit - Secondary - Pressure
3553psi
Maximum Auxiliary Circuit - Primary - Flow
21.1gal/min
Maximum Auxiliary Circuit - Secondary - Flow
6.6gal/min

Cab

Note
*European Union Directive “2000/14/EC”
Dynamic Operator Sound Pressure Level (ISO 6396:2008)
81dB(A)
Exterior Sound Power Level - ISO 6395:2008*
97dB(A)

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)
ISO 12117-2
Tip Over Protective Structure (TOPS)
ISO 12117
Top Guard
ISO 10262 (Level I)

Dimensions - Standard Stick

Maximum Dump Clearance
150in
Maximum Dig Height
210in
Maximum Blade Height
16in
Maximum Blade Depth
22in
Boom Swing - Right
31in
Track Belt/Shoe Width
16in
Dig Depth
137in
Boom Swing - Left
27in
Boom In Reach
94in
Boom Height - Shipping Position
69in
Tail Swing
44in
Swing Bearing - Height
24in
Maximum Reach - Ground Level
222in
O/A Shipping Height
100in
O/A Shipping Length
210in
O/A Track Width
78in
O/A Undercarriage Length
102in
Vertical Wall
92in
Maximum Reach
228in

Operating Specifications

Counterweight
364.4lb
Stick Length - Standard
55in
Stick Length - Long
70in

Undercarriage

Track Roller Type
Center Flange
Number of Carrier Rollers
1
Number of Track Rollers
4

Travel System

Gradeability - Maximum
30°
Ground Pressure - Canopy
4.5psi
Maximum Traction Force - High Speed
6025lb
Maximum Traction Force - Low Speed
10746lb
Travel Speed - High
2.8mile/h
Travel Speed - Low
1.7mile/h
Ground Pressure - Cab
4.6psi

Lift Capacities at Ground Level - Lift Point Radius: 4500 mm (14'9”)

Blade Down - Side
1521lb
Blade Up - Front
1808lb
Blade Up - Side
1367lb
Blade Down - Front
3042lb

Lift Capacities at Ground Level - Lift Point Radius: 3000 mm (9'8”)

Blade Down - Side
2844lb
Blade Up - Front
3417lb
Blade Down - Front
5710lb
Blade Up - Side
2535lb

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.4 metric tonnes.

Service Refill Capacities

Hydraulic Tank
18gal (US)
Hydraulic System
20.6gal (US)
Fuel Tank
16.6gal (US)
Engine Oil
2.5gal (US)
Cooling System
2.8gal (US)

QUALITY

The durable hoods and frame and the compact radius design of the 305.5E2 let you work comfortably and confidently in confined areas. The operator environment includes a high quality suspension seat, easy to adjust armrests and 100% pilot controls which offer consistent and long-lasting controllability.

EFFICIENCY

High Definition Hydraulic System provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability. Power on Demand provides optimal efficiency and performance the moment you need it. This automatic system ensures fuel efficiency through appropriate engine rating to meet all operational needs as required.

VERSATILITY

Broad range of Cat Work Tools make the Cat Mini Excavator a versatile machine able to meet the requirements of any job site. Over 200 degrees of bucket rotation provides greater material retention during truck loading and easier flat wall digging without having to reposition the machine.

PERFORMANCE

Front shovel bucket orientation provides the operator with more ways to get the job done faster. COMPASS Control Panel is a standard feature that allows the operator to easily adjust auxiliary flows to achieve the optimal work tool performance, activate auto idle for improved fuel efficiency and utilize the security system to ensure protection of valuable assets with the simple touch of a button. The Site Reference System included in the COMPASS monitor provides output from pitch and roll sensors to aid in grading and level trenching. This impacts accuracy and productivity for job site finishing.

SERVICEABILITY

Convenient service and maintenance requirements include ease of access to daily check points, 500 hour engine oil and filter change period, 500 hour grease interval on front implement, S·O·SSM oil sampling valve and overall long term durability.

SAFETY

All Cat Mini Excavators from 3.5 metric tons to 8 metric tons are ROPS, TOPS and Top Guard Level 1 certified and include the Cat Interlock (hydraulic lockout) System, a certified accumulator which allows for auxiliary pressure to be released, making connecting and disconnecting work tools safer and easier, and a travel alarm. All of these safety features are standard on the E2 model lineup (travel alarm optional in Europe).

Standard Equipment:

Optional Equipment:

    Engine
    • Engine block heater
    Hydraulic System
    • Quick coupler lines
    • Boom lowering check valve
    • Stick lowering check valve
    • Secondary auxiliary hydraulic lines
    Operator Environment
    • Cab:
      • Air conditioning
      • Heat
      • High back suspension seat
      • Interior light
      • Interlocking front window system
      • Radio
      • Windshield wiper
    Undercarriage
    • Power angle blade
    • Track, double grouser (steel), 400 mm (16 in)
    • Track, double grouser (steel) with rubber pad, 400 mm (16 in)
    Front Linkage
    • Quick coupler: manual or hydraulic
    • Thumb
    • Buckets
    • Full range of performance matched work tools
      • Auger, hammer, ripper
    Lights And Mirrors
    • Light, cab with time delay capability
    • Mirror, canopy right
    • Mirror, canopy left
    • Mirror, cab rear
    Safety And Security
    • Battery disconnect
    • Beacon socket
    • Front wire mesh guard
    • Rearview camera
    • Vandal guard
    Other Attachments
    • Counterweight, extra
