335F L Hydraulic Excavator

335F L Hydraulic Excavator

360° Exterior View

The Cat® 335F L provides excellent performance and efficiency and is capable of working in the most confined spaces whatever the job. The type of up-close, space-restricted work ...
PDF Print Share

Engine

Net Power - ISO 9249
200HP
Engine Model
Cat C7.1
Engine Power - ISO 14396
204HP
Bore
4.13in
Stroke
5.31in
Displacement
428in³

Weights

Operating Weight
83820lb

Working Ranges & Forces

Maximum Digging Depth
22.93ft
Boom
Reach Boom 6.15 m
Stick
R3.2CB2 (3.2 m)
Bucket
CB1350HD
Maximum Reach at Ground Level
34.91ft
Maximum Cutting Height
36.58ft
Maximum Loading Height
26.15ft
Minimum Loading Height
9.58ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
22.41ft
Maximum Vertical Wall Digging Depth
18.93ft
Bucket Digging Force - ISO
40241lbf
Stick Digging Force - ISO
28326lbf

Hydraulic System

Main System - Maximum Flow
494 l/min (130.5 gal/min)
Maximum Pressure - Equipment
5076psi
Maximum Pressure - Equipment - Lift Mode
5511psi
Maximum Pressure - Travel
5366psi
Maximum Pressure - Swing
3974psi

Swing Mechanism

Swing Speed
9.9r/min
Maximum Swing Torque
60628ft·lbf

Service Refill Capacities

Fuel Tank Capacity
101.7gal (US)
Cooling System
7.9gal (US)
Engine Oil
6.3gal (US)
Swing Drive - Each
2.4gal (US)
Final Drive - Each
2.1gal (US)
Hydraulic System - Including Tank
76.6gal (US)
Hydraulic Tank
40.7gal (US)
DEF Tank
6.1gal (US)

Dimensions

Boom
Reach Boom 6.15 m
Stick
R3.2CB2 (3.2 m)
Bucket
CB1350HD
Shipping Height - Top of Cab
11.61ft
Shipping Length
32.22ft
Tail Swing Radius
6.23ft
Counterweight Clearance
3.94ft
Ground Clearance
1.57ft
Track Length
16.47ft
Length to Center of Rollers
13.25ft
Track Gauge
8.5ft
Transport Width
11.29ft

MAXIMIZE PERFORMANCE

  • The Cat C7.1 engine is designed to meet EU Stage IV emission standards while burning up to 16% less fuel than the 328D LCR.

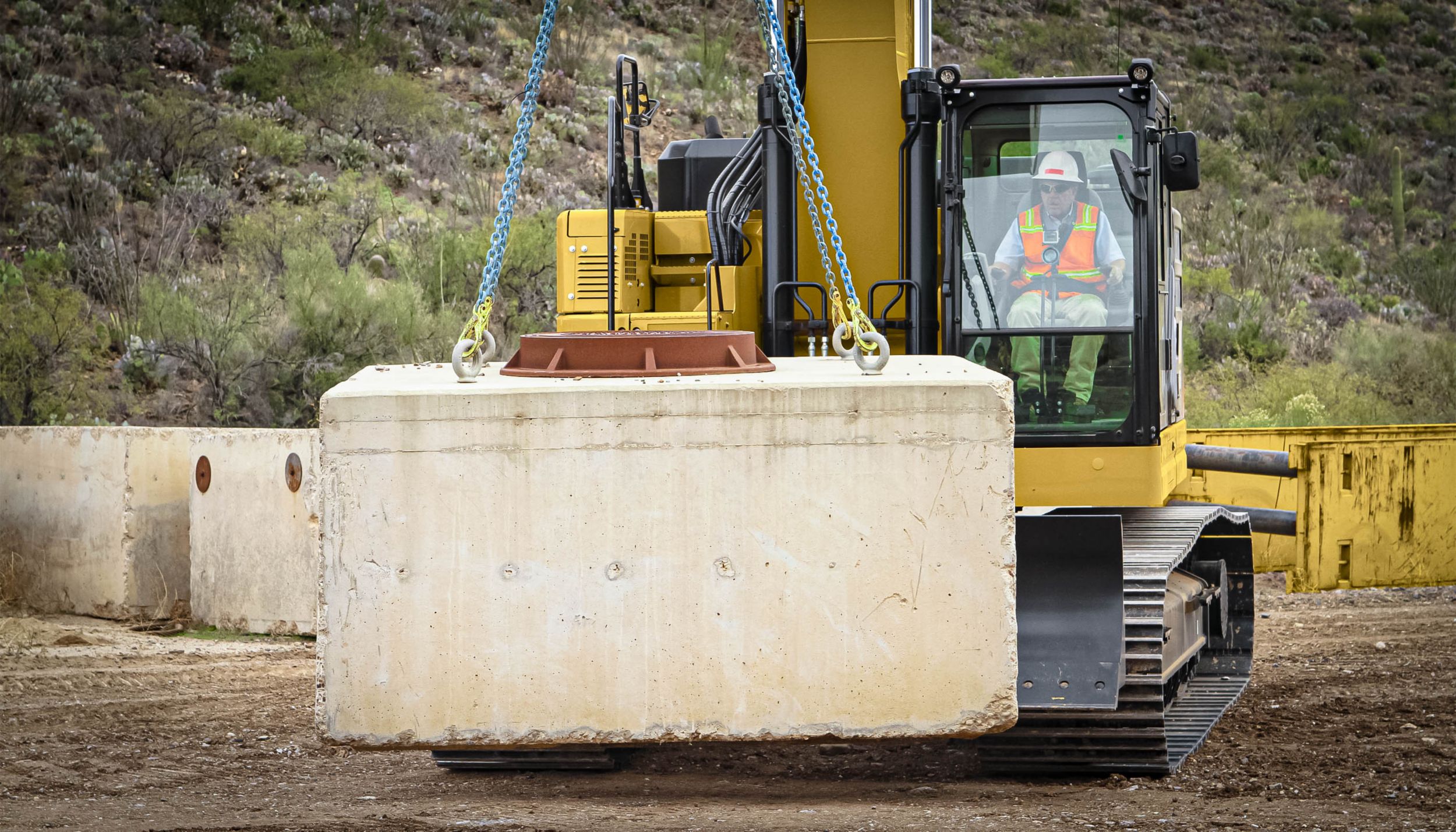

  • The hydraulic system supports lifting up to 10 886 kg over the side at ground level without limitation – approximately 5% more than the model it replaces.
  • Standard high-ambient cooling enables the machine to work with maximum power in hot conditions up to 52° C.
  • Long, heavy-duty undercarriage provides greater stability when lifting heavy objects, leading to greater overall productivity.

SAVE MAINTENANCE TIME

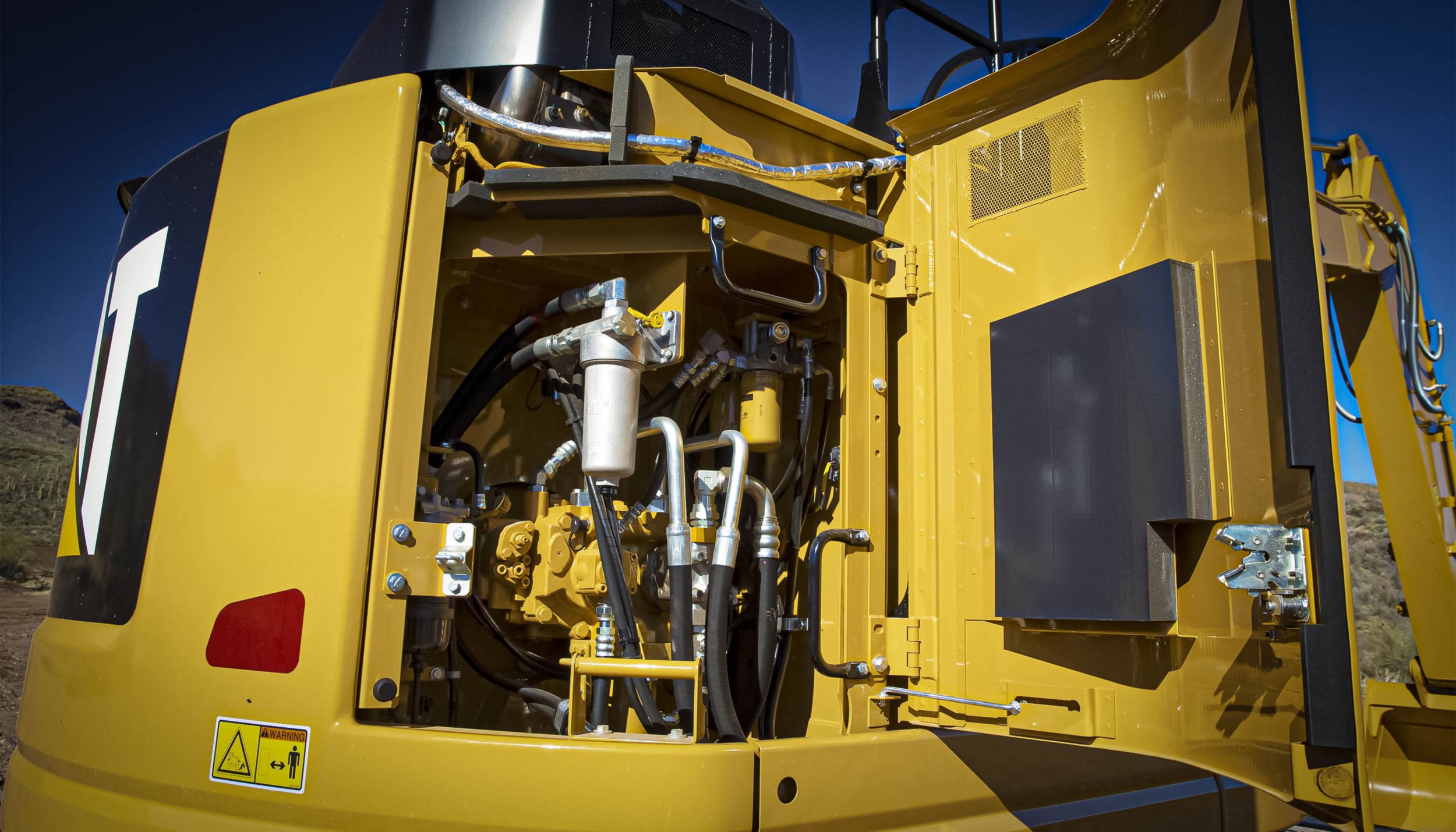

  • Most routine maintenance items like grease points and fluid taps are reachable at ground level.
  • Compartments are designed for safe, convenient access to filters, hoses, and other components.
  • Service doors help keep debris out and latch in place to enhance service speed.

BETTER COMFORT AND CONTROL

  • The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
  • Automatic climate control helps maintain consistent cab temperature.
  • Joystick consoles and armrests are adjustable.
  • Fully adjustable air suspension seat maximizes comfort levels during long periods of operation.
  • The LCD monitor is easy to navigate and programmable in 44 languages.
  • Standard rearview camera and right-hand side cameras enhance visibility.

OPTIONS TO MEET YOUR NEEDS

  • Utility and finishing work are fast and flawless with a Cat tilt bucket and compactor.

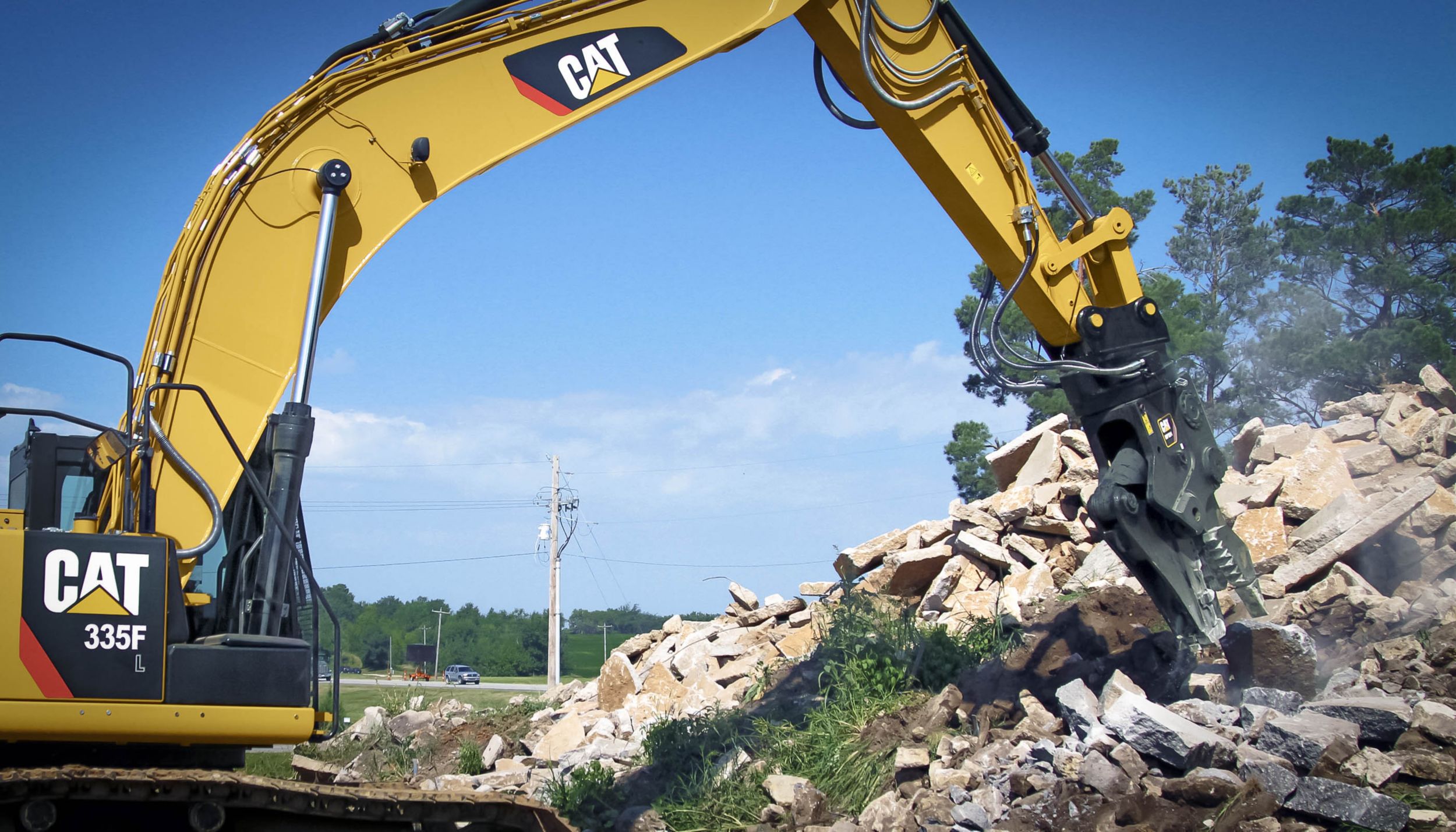

  • Demolition work is quick and easy with a Cat hammer, thumb, shear, or multiprocessor.
  • A coupler lets you swap between attachments in seconds without leaving the cab.

HEAVY DUTY CONSTRUCTION

  • The large swing bearing is secured with elongated bolts to help handle the most swing-intensive work.
  • Abrasion-resistant Cat XT™-6 hose can stand up to high pressures over the long haul.
  • Booms and sticks are built for long service.
  • Box-section structures with multi-plate fabrications, castings, and forgings are used in high-stress areas.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.

INTEGRATED CAT TECHNOLOGIES

  • Cat technology solutions increase production, minimize operating costs, and optimize return on investment.
  • VisionLink® provides wireless access to machine operating data such as location, hours, idle time, fuel usage, productivity, and diagnostic codes to optimize performance.

Standard Equipment:

Optional Equipment:

    Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
    Cab
    • Air-adjustable seat with heat (Deluxe only)
    Hydraulic System
    • Boom and stick lowering check valves
    • Hammer return filter circuit
    • Combined flow/high-pressure auxiliary circuit
    • Medium-pressure circuit
    • Quick coupler circuit for Cat Pin Grabber
    Undercarriage And Structures
    • 600 mm (24") triple grouser shoes
    • 700 mm (28") triple grouser shoes
    • 850 mm (33") triple grouser shoes
    Electrical System
    • Premium surround lighting package as Optional
    Safety And Security
    • Right-hand-side camera
    • 360° visibility
