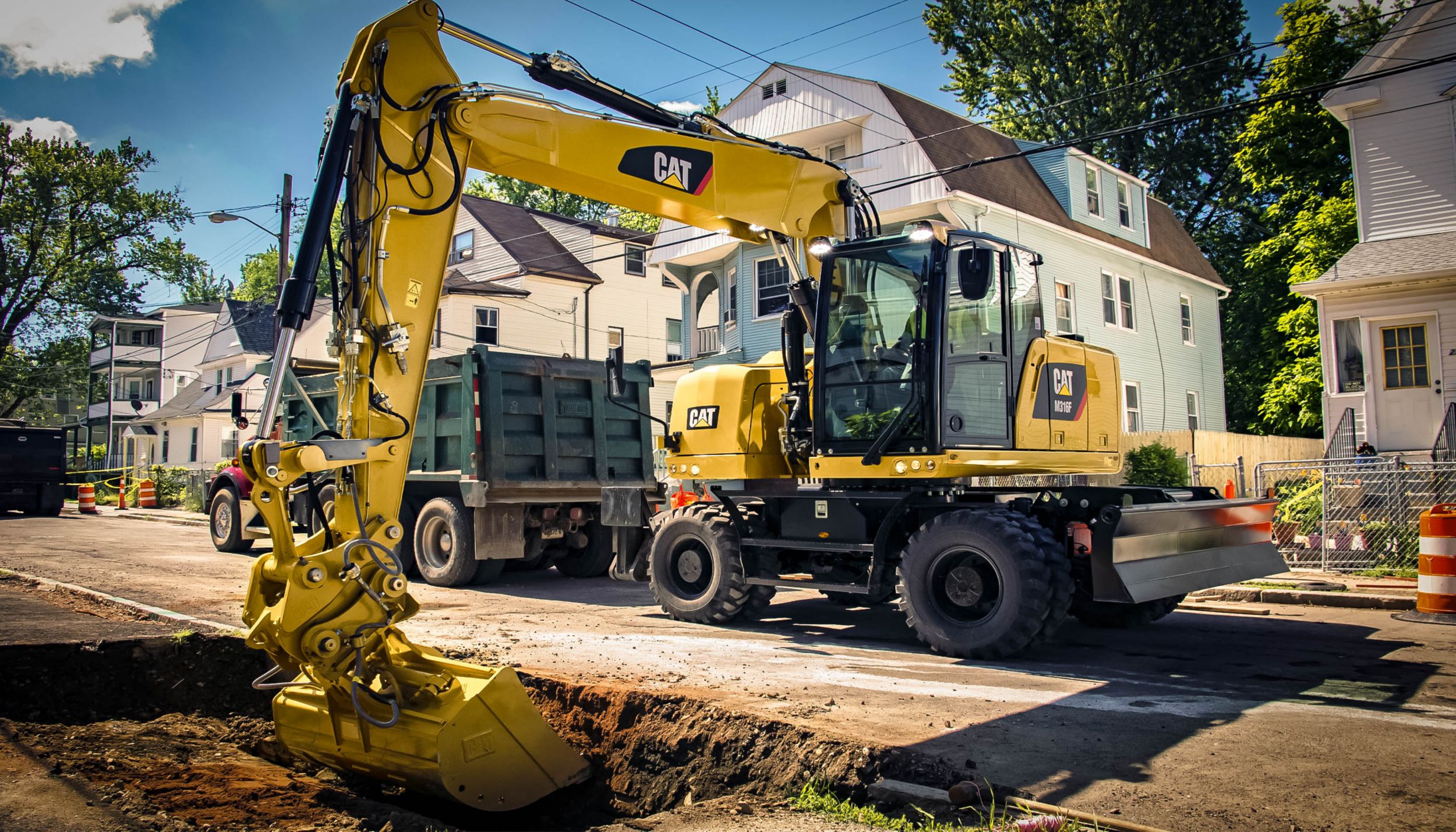

M316F Wheeled Excavator

M316F Wheeled Excavator

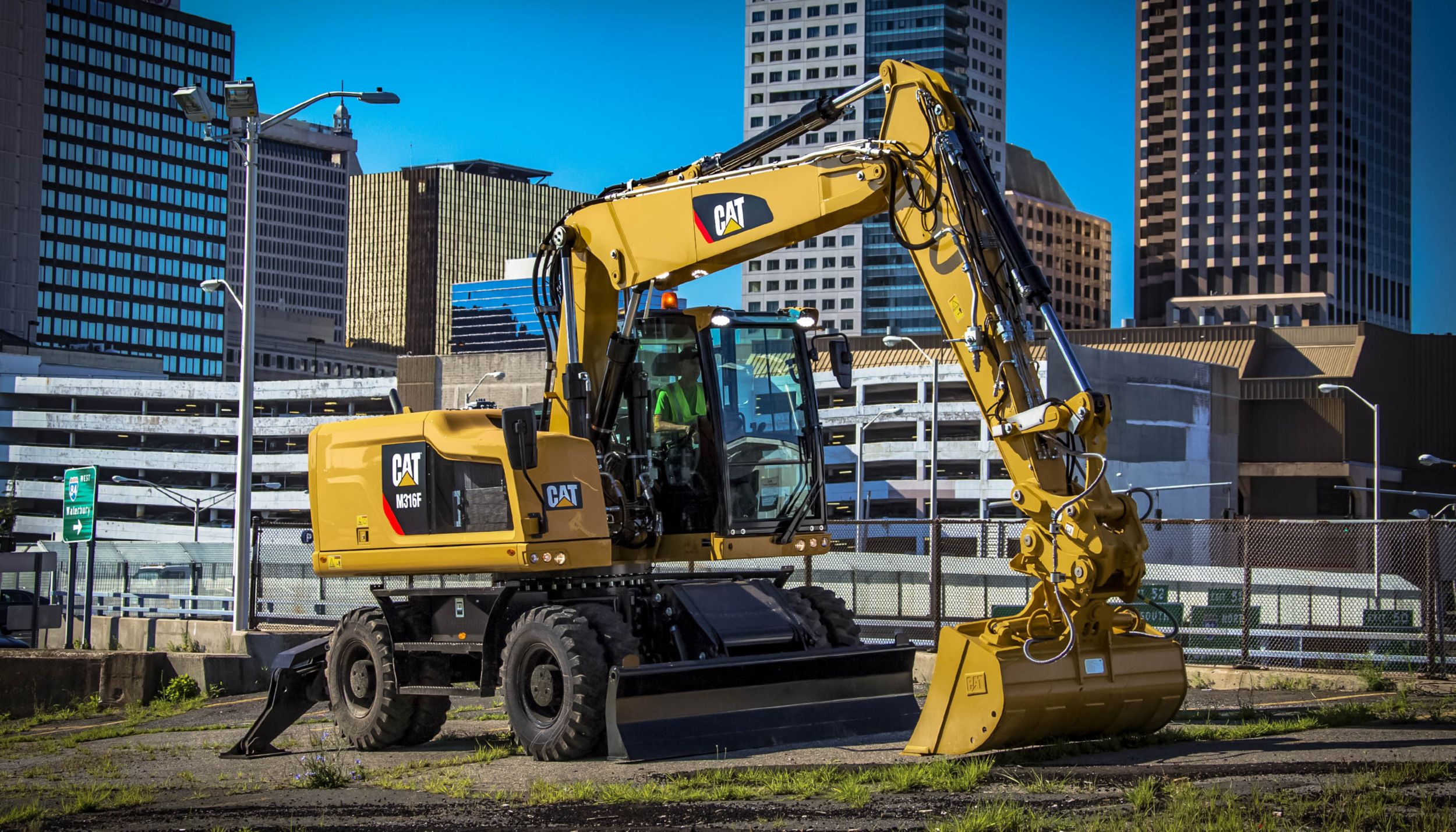

360° Exterior View

Working hard has never been easier with Cat® F Series Wheeled Excavators. Enjoy the versatility offered by integrated solutions and technologies that do repetitive tasks for you. These ...
PDF Print Share

Engine

Engine Model
Cat C4.4
Net Power
141HP
Bore
4.1in
Stroke
5in
Displacement
268.5in³
Maximum Torque - 1,400 rpm
413ft·lbf
Note
*Metric values.
Number of Cylinders - In Line
4
Ratings
2000r/min
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
110 kW (148 hp [150 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
105 kW (141 hp [143 hp]*)

Drive

Maximum Travel Speed
22mile/h

Swing Mechanism

Swing Speed
9r/min
Maximum Swing Torque
30977ft·lbf

Transmission

Drawbar Pull
23380lbf
Maximum Gradeability (16 500 kg/36,380 lb)
78%
Maximum Forward/Reverse - 2nd Gear
22mile/h

Undercarriage

Ground Clearance
14.6in
Note
*For Optional Trailer Package – Not available in Australia/New Zealand.
Maximum Towable Trailer Mass*
17637lb

Weights

Operating Weight*
15 410 to 17 490 kg (33,973 to 38,559 lb)
VA Boom - Front and Rear Outriggers
36663lb
VA Boom - Rear Dozer, Front Outriggers
36068lb
One-Piece Boom - Front and Rear Outriggers
35605lb
One-Piece Boom - Front Dozer, Rear Outriggers
35009lb
Note
*Includes long stick, 3200 kg (7,055 lb) counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.
Counterweights
3200/3700 kg (7,055/8,157 lb)

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
63gal/min
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683psi
Maximum Pressure - Auxiliary Circuit - High Pressure
5076psi
Maximum Flow - Swing Mechanism
20.6gal/min
Maximum Flow - Implement/Travel Circuit
63gal/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
13.2gal/min
System
63.4gal (US)
Swing Mechanism
5366psi
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076psi
Maximum Pressure - Implement Circuit - Heavy Lift
5439psi

Working Ranges

VA Boom - 3100 mm (10'2") Stick Length*: Reach at Ground Level
26.83ft
VA Boom - 3100 mm (10'2") Stick Length*: Digging Height
29.33ft
VA Boom - 3100 mm (10'2") Stick Length*: Digging Depth
16.58ft
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.83ft
VA Boom - 2600 mm (8'6") Stick Length: Dump Height
23.83ft
VA Boom - 2600 mm (8'6") Stick Length: Digging Height
34.17ft
VA Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
30.25ft
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth
20ft
VA Boom - 2400 mm (7'10") Stick Length: Digging Depth
19.33ft
VA Boom - 2400 mm (7'10") Stick Length: Digging Height
33.67ft
VA Boom - 2400 mm (7'10") Stick Length: Dump Height
23.33ft
One-Piece Boom - 3100 mm (10'2") Stick Length*: Digging Height
25.25ft
One-Piece Boom - 3100 mm (10'2") Stick Length*: Reach at Ground Level
26ft
One-Piece Boom - 3100 mm (10'2") Stick Length*: Digging Depth
15.92ft
One-Piece Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
30.17ft
One-Piece Boom - 2600 mm (8'6") Stick Length: Dump Height
20.33ft
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Height
30.25ft
One-Piece Boom - 2600 mm (8'6") Stick Length: Digging Depth
19.42ft
One-Piece Boom - 2400 mm (7'10") Stick Length: Reach at Ground Level
29.5ft
One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Height
29.92ft
One-Piece Boom - 2400 mm (7'10") Stick Length: Dump Height
19.92ft
One-Piece Boom - 2400 mm (7'10") Stick Length: Digging Depth
18.75ft
Note (1)
Range values are calculated with GD bucket 1100 mm (3'7"), 0.80 m3 (1.05 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").
Note (2)
*Industrial stick (no bucket linkage). Not available in Australia and New Zealand.

Service Refill Capacities

Fuel Tank - Total Capacity
87.2gal (US)
Diesel Exhaust Fluid Tank
5gal (US)

PERFORMANCE AND PRODUCTIVITY

  • Cat C4.4 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Dedicated swing pump, allowing faster, smoother combined movements.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel, with on-demand fan or new optimized demand-driven driveline.
  • Highly mobile, the M316F can travel up to 35 km/h (22 mph).

EXPAND YOUR CAPABILITIES

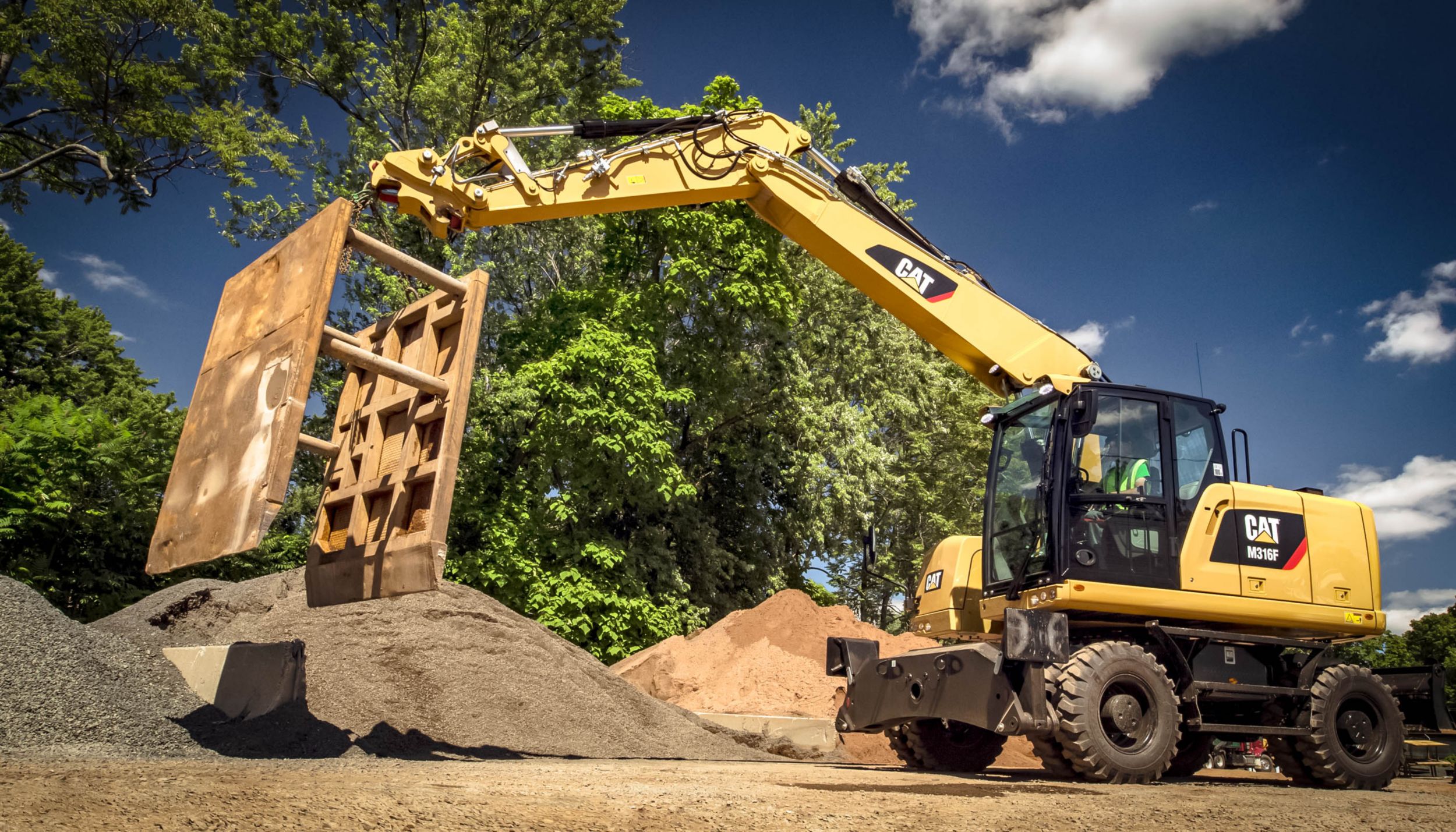

  • Flexible configurations to meet all your needs with various booms/sticks, tires, undercarriages and counterweights.
  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure. – Readiness for Cat Pin Grabber quick coupler (with lines and circuits). – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Trailer-ready package option*. Just add your hitch and go.
  • Joystick buttons/sliders can be set up per tool as desired.

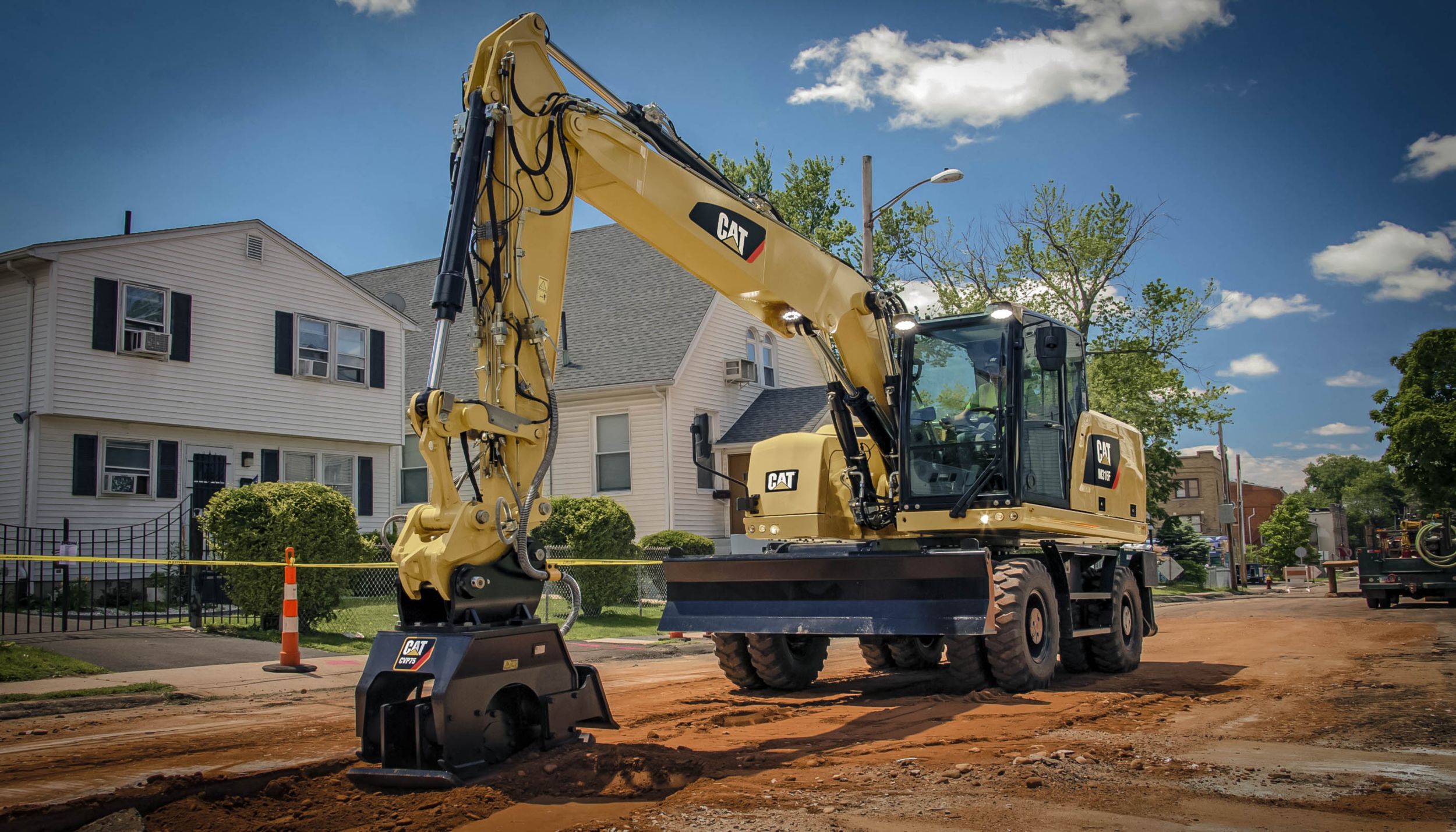

  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.
  • Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.
  • Couplers let you swap between attachments in seconds without leaving the cab.

    * Not available in Australia/New Zealand.

OPERATOR COMFORT AND CONTROL

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.

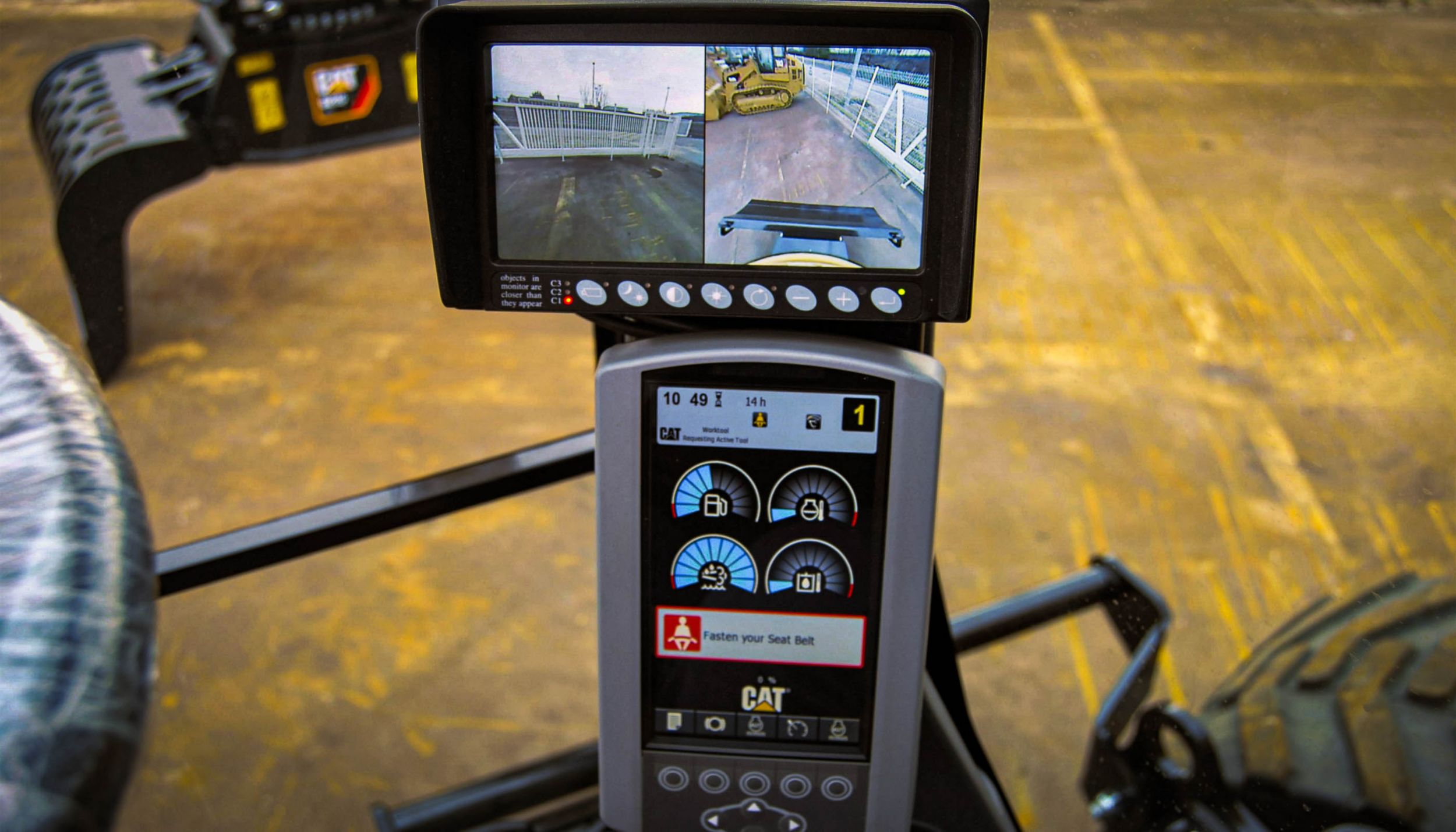

  • Split-screen monitor to allow quick view of both cameras on the same display.

BUILT-IN SAFETY FEATURES

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

LOWER MAINTENANCE COSTS

  • Ground level access to all routine maintenance (like fuel and engine oil filters).

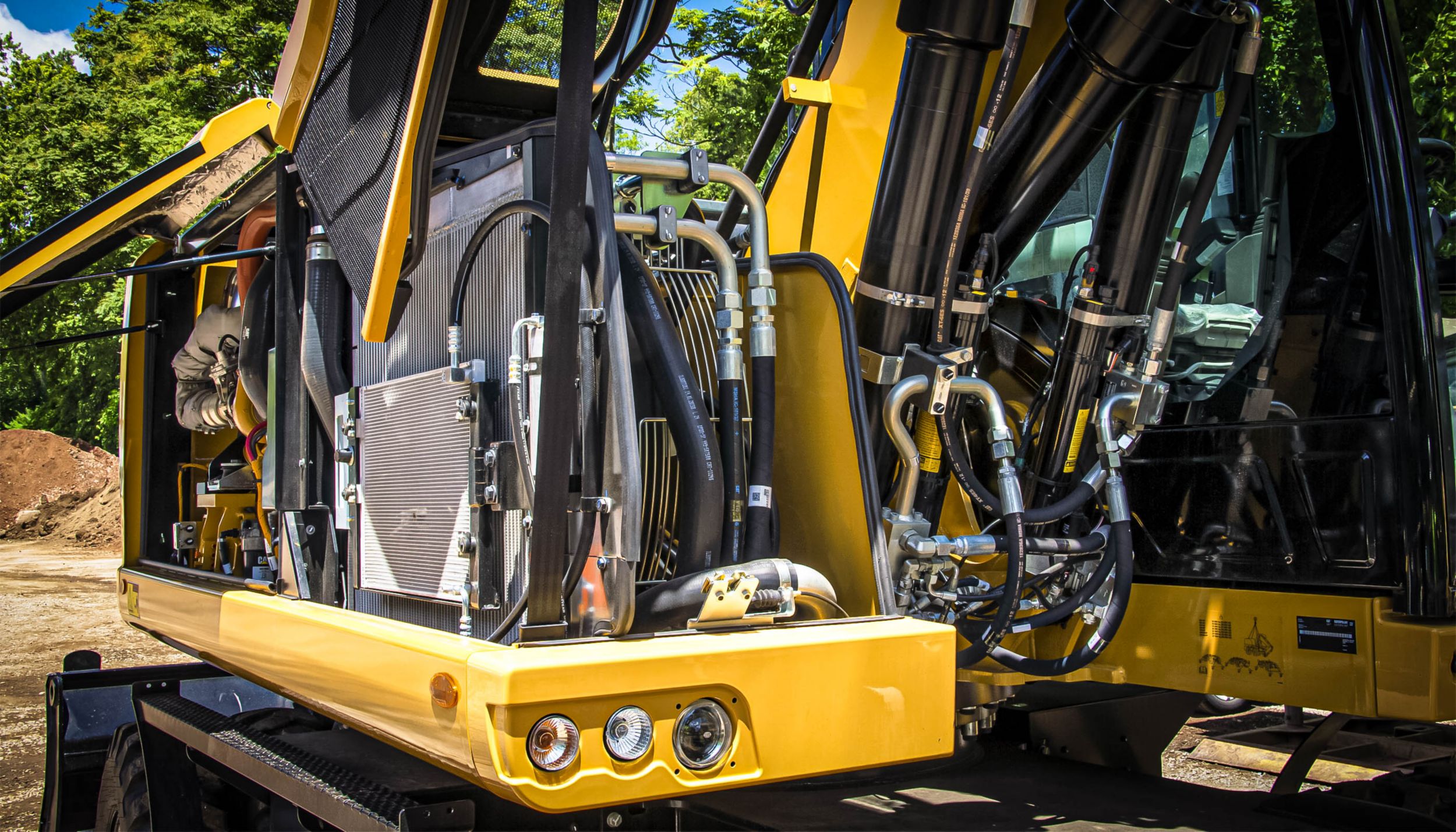

  • Easy access: clean, simple design. Radiators are all gathered together.
  • Reduced maintenance: automatic features (like lubrication system) along with long greasing intervals. No Diesel Particulate Filter.

TECHNOLOGY THAT PUSHES PROFITS

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time, events, and diagnostic codes.
